MADE IN ITALY 🇮🇹
AluFrames
Aluminium rails for counterframes
AluFrames is a system of concealed tracks, designed for the installation of wall-pocket doors without counterframe. The system has a maximum load capacity of 176 lbs (80 kg).
AluFrames is a patented system of hidden aluminium tracks designed to install wall-pocket sliding doors without a counterframe.
Perfect for contemporary spaces, it’s compatible with both wooden and glass doors, offering a clean, minimal aesthetic.
Quick & Clean Installation
No need to damage drywall for door removal or maintenance.
Push Magnetic System
Seamless soft close and easy opening when the door is fully retracted.
High Capacity
Handles up to 176 lbs (80 kg) per door.
Track Lengths: 23.6" – 59.1" (600 – 1500 mm)
Optional Track Lengths: 78.7" and 118.1" (2000 mm and 3000 mm)
Glass Thickness:
-
5/16" (0.31 – 0.34 in / 8 – 8.7 mm)
-
3/8" (0.39 – 0.42 in / 10 – 10.7 mm)
-
1/2" (0.47 – 0.50 in / 12 – 12.7 mm)
-

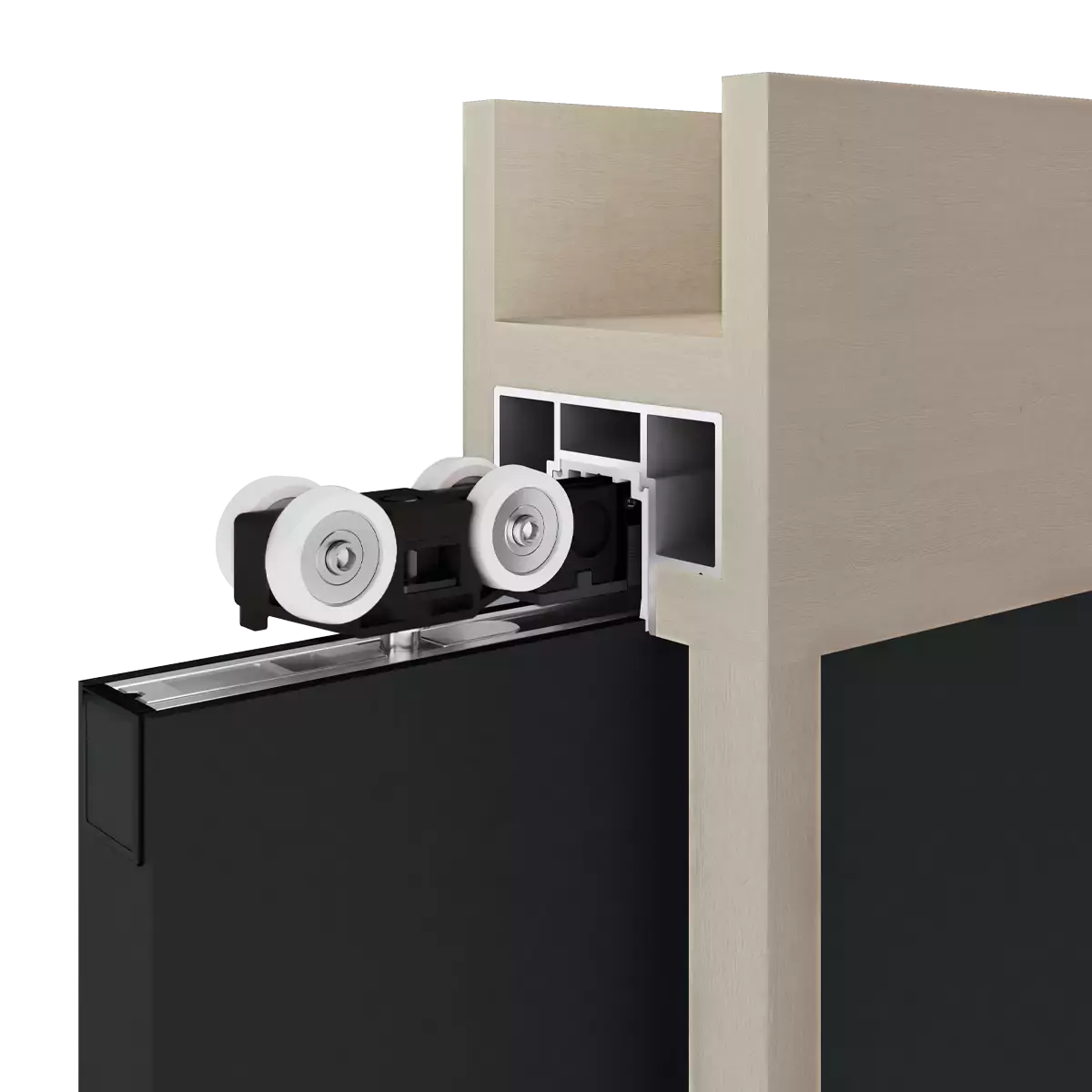

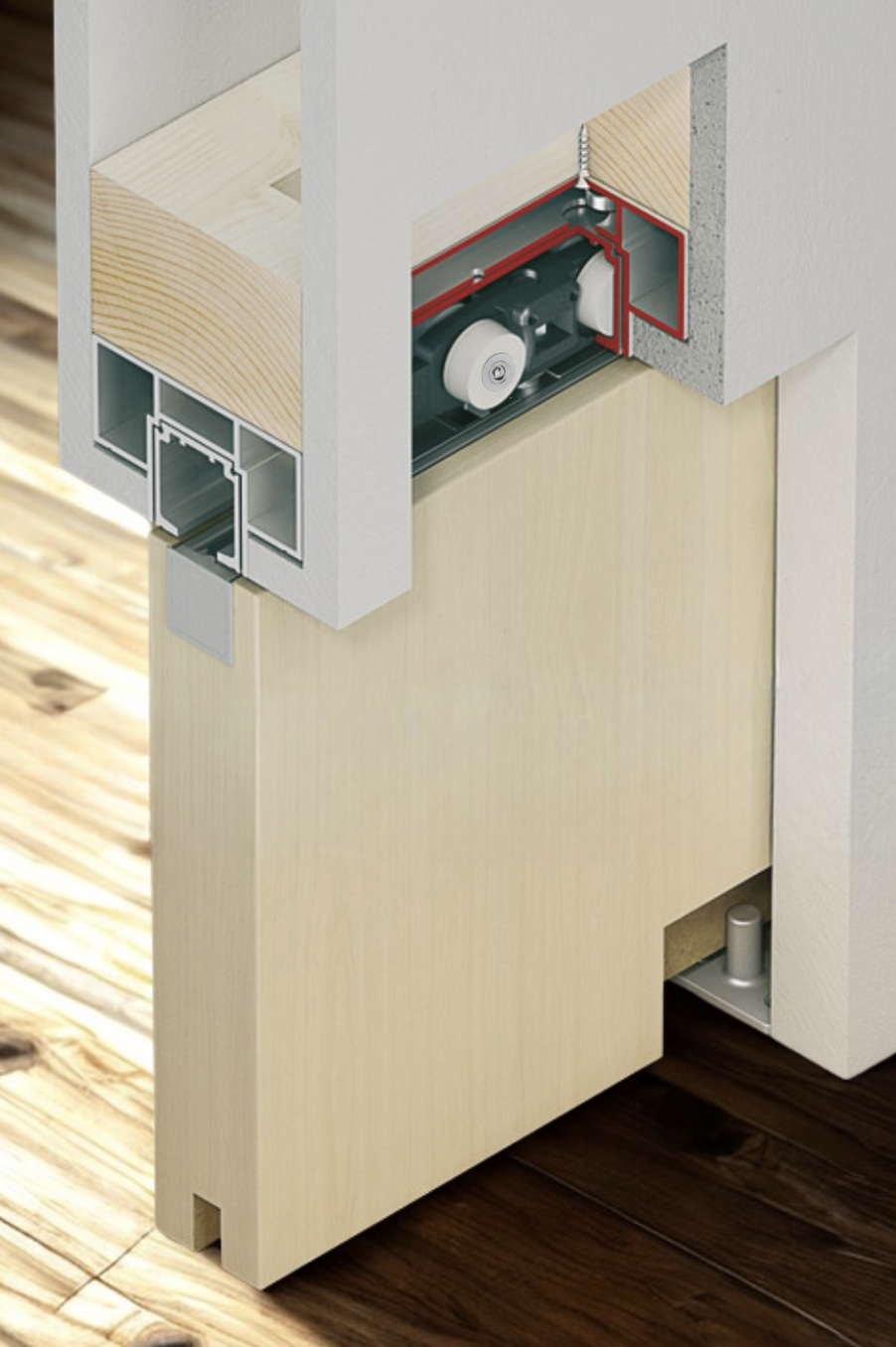

AluFrames system for WOODEN doors is available in combination with Evolution series (concealed bracket sliding system) and Classic series (standard bracket sliding system).
Wood vs Glass Doors
A system of concealed tracks, designed for the installation of wall-pocket doors without counterframe.

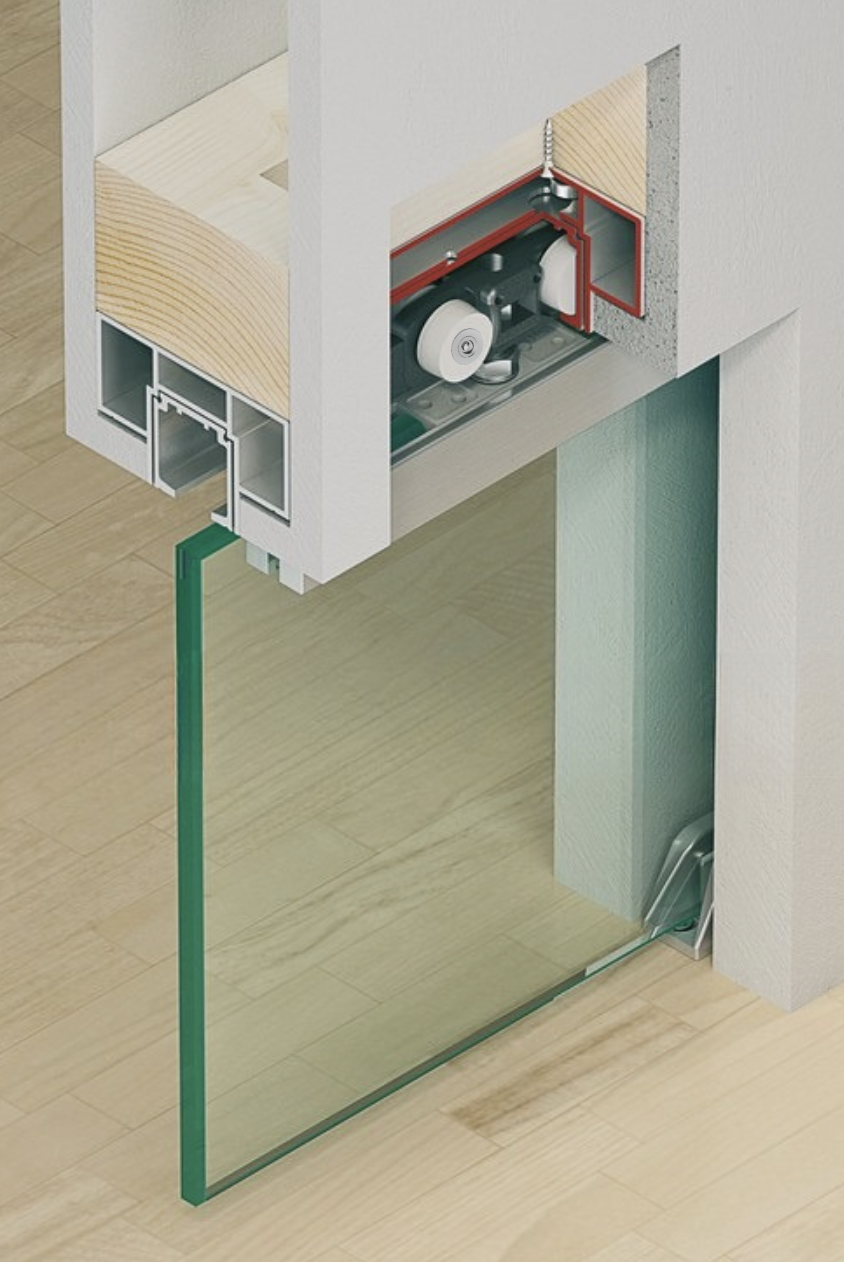

AluFrames system for GLASS doors it’s available in combination with clamps series Vetro 24 (0.94 inches height glass clamps with glass drilling requirements) and Vetro 40 (1.57 inches height glass clamps without any drilling requirements).Â
Available options for Wooden and Glass Doors:
AluFrames system for wooden doors is available in combination with Evolution and Classic series.
WOOD
Classic (Visible)
Evolution (Concealed)
Bracket Visibility
Visible on top of door
Completely hidden inside door
Aesthetics
Technical look, slightly exposed
Minimalist and seamless look
Installation
Easier to install
Requires precision routing in door
Ideal For
Utility rooms, technical spaces
Modern interiors, design-focused areas
Price Range
Lower
Slightly higher
AluFrames system for glass doors is available in combination with clamps series Vetro 24 and Vetro 40.
GLASS
Vetro 24
Vetro 40
Glass Drilling Required
Glass Drilling is required
Glass Drilling is NOT required
Clamp Height
0.94 inches (24 mm)
1.57 inches (40 mm)
Installation Difficulty
More precise, requires drilled holes
Easier and quicker to install
Look & Aesthetics
Minimal clamp visibility
Slightly more visible clamp
Ideal For
Projects with fully customized glass
Retrofits or ready-made glass panels
AluFrames Pocket Soft-Closing Sliding System for Wooden Doors. Made in Italy
AluFrames Pocket Vetro Sliding System for Glass Doors. Made in Italy
for wooden doors
for glass doors
Answers to Questions
-
AluFrames is a concealed aluminum rail system designed for pocket doors without a metal counterframe. It's suitable for both wooden and glass doors.
