Description
Price per 1 Hinge!
Standard Applications Require 2 Hinges.
Minimum Order Quantity - 2 Hinges (2-piece per package)
*** Production and delivery of special order colors will take approximately 8 to 10 weeks.
*** Production and delivery of special order colors will take approximately 8 to 10 weeks.
SIMONSWERK TECTUS TE 645 3D Hinge. Completely concealed for unrebated and rebated flush doors with wood, steel, and aluminium frames. New versions for increased and optimized load capacity.
- completely concealed hinge system
- for timber, steel or aluminium frames
- for unrebated heavy-duty doors
- sideways closed hinge body for a homogeneous mortise appearance
- with comfortable 3D adjustment (side +/- 3,0 mm, height +/- 3,0 mm, compression +/- 1,0 mm)
- maintenance-free slide bearings
Technical Information
| Detail | Value | |
| Load capacity | 661.0 lbs | 300.0 kg |

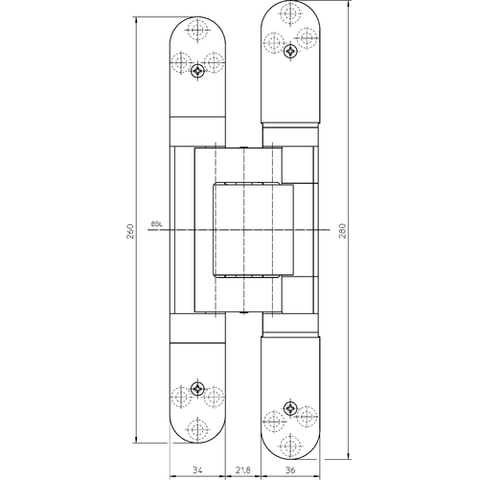

| Width (door part) | 1.339" | 34.0 mm |
| Length (door part) | 10.236" | 260.0 mm |
| Width (frame part) | 1.417" | 36.0 mm |
| Length (frame part) | 11.024" | 280.0 mm |
| Cutter diameter | 0.945" | 24.0 mm |
| Opening angle | 180° | |
Suitable for
| Detail | Value |
| Door leaf material | wood, hollow metal |
| Door edge | flush |
| Type of frame | aluminium frame, blind frame, block frame, casing frame, steel frame |
Note
- The load capacity mentioned above refers to the use of 2 hinges per door leaf with a height/width ratio of 2:1.
