Product Overview

Price per 1 Hinge!

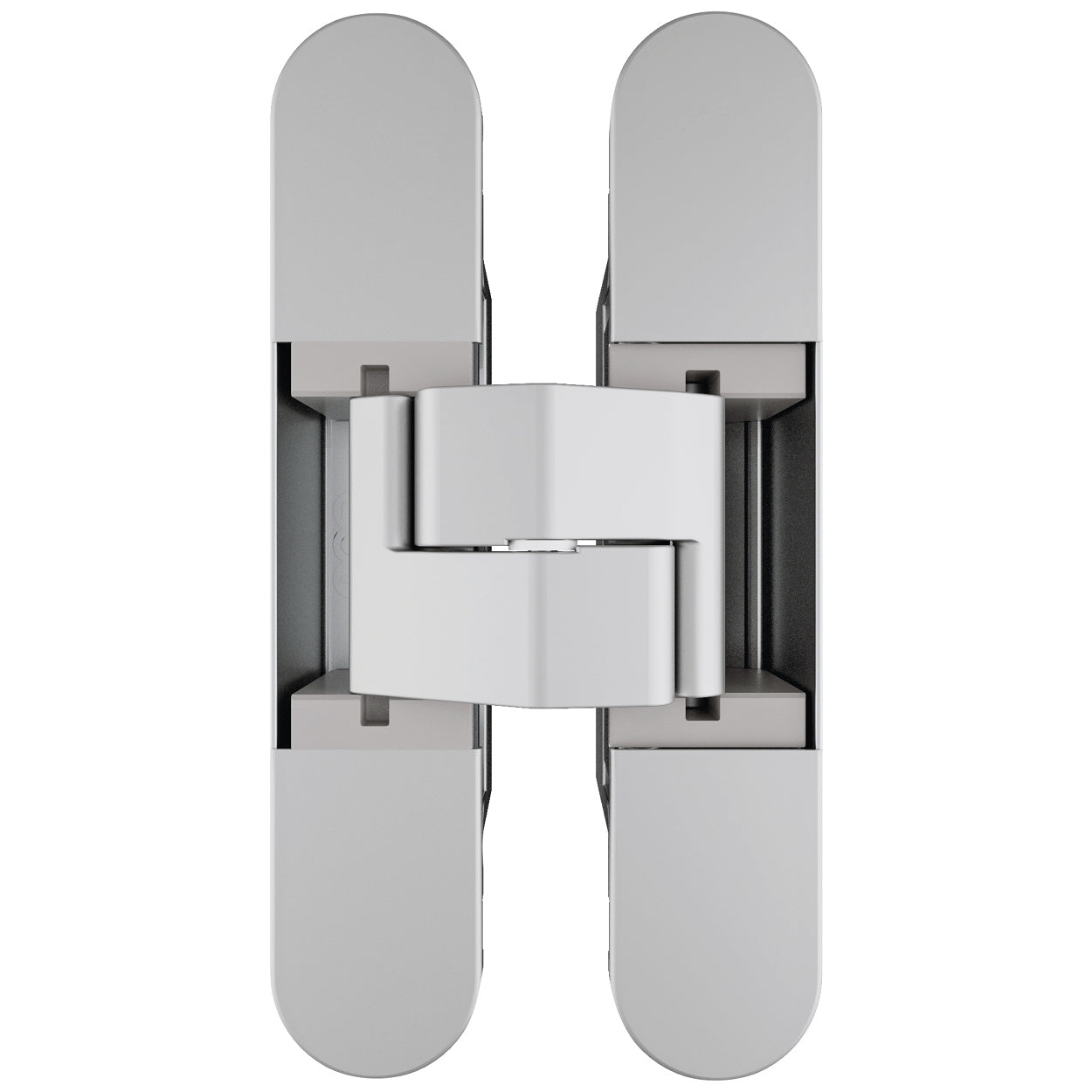

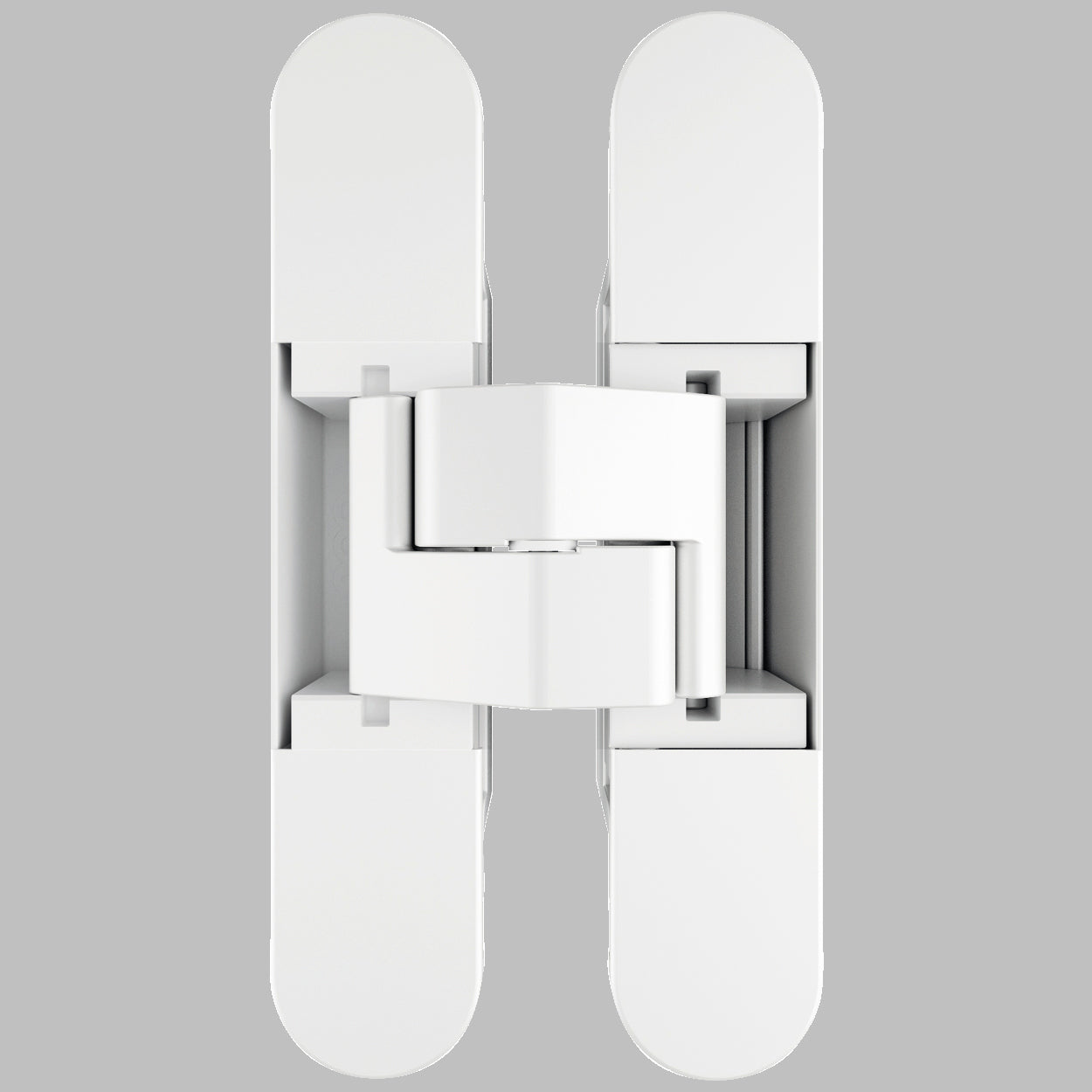

Concealed hinge for flush doors with or without rebate and for aluminium doors, thanks to the 4 mm fastening thickness of the hinge.

Standard Applications require at least 2 Hinges.
  • Ideal even for aluminium frames.
  • Invisible thanks to reduced dimensions
  • For wood and aluminium doors.

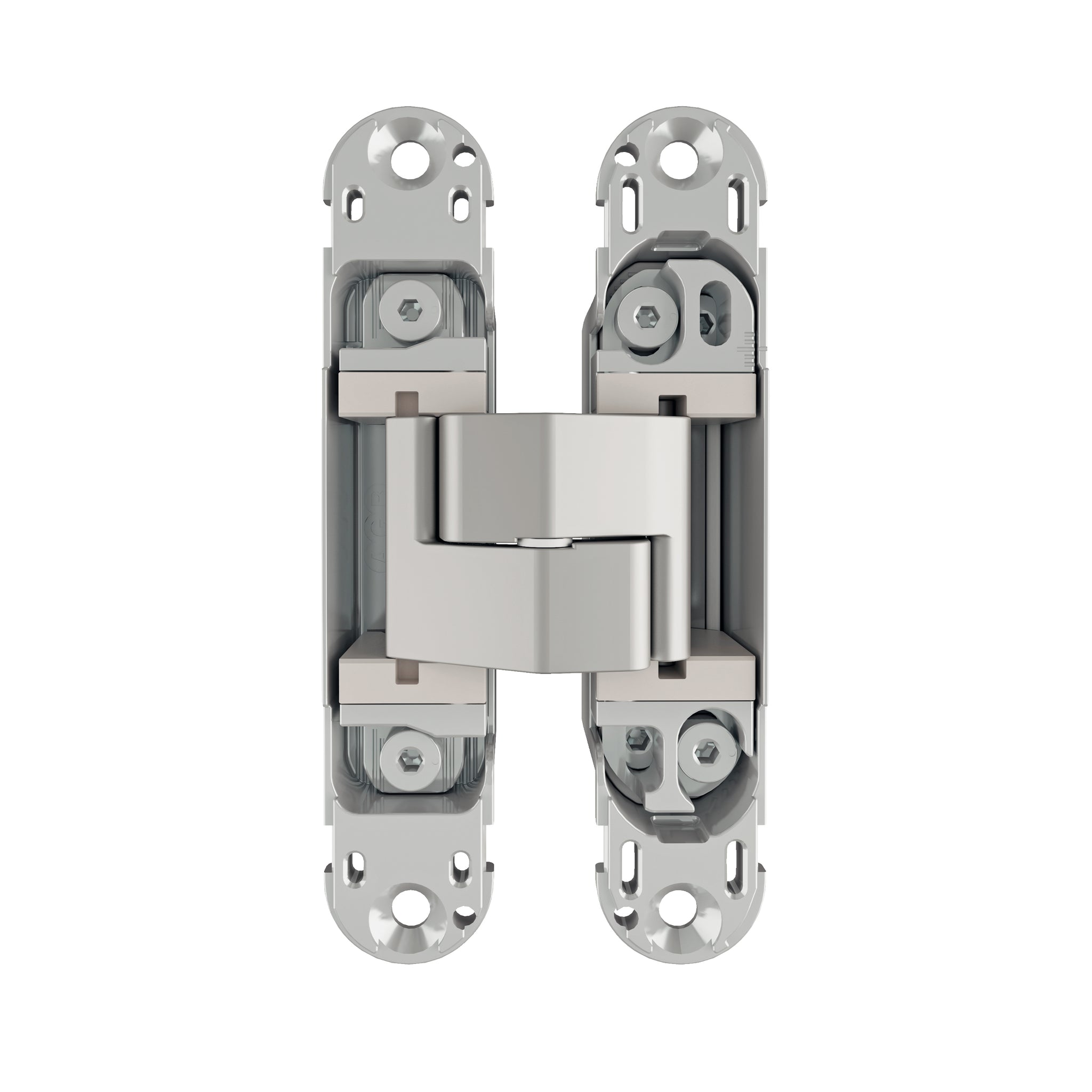

  • Three adjustments completely independent.
  • Metal flush covers.

 

    Adjustments

    in pressure ±1 mm (3/64")
    vertical ±2 mm (5/64")
    horizontal ±1,5 mm (1/16")

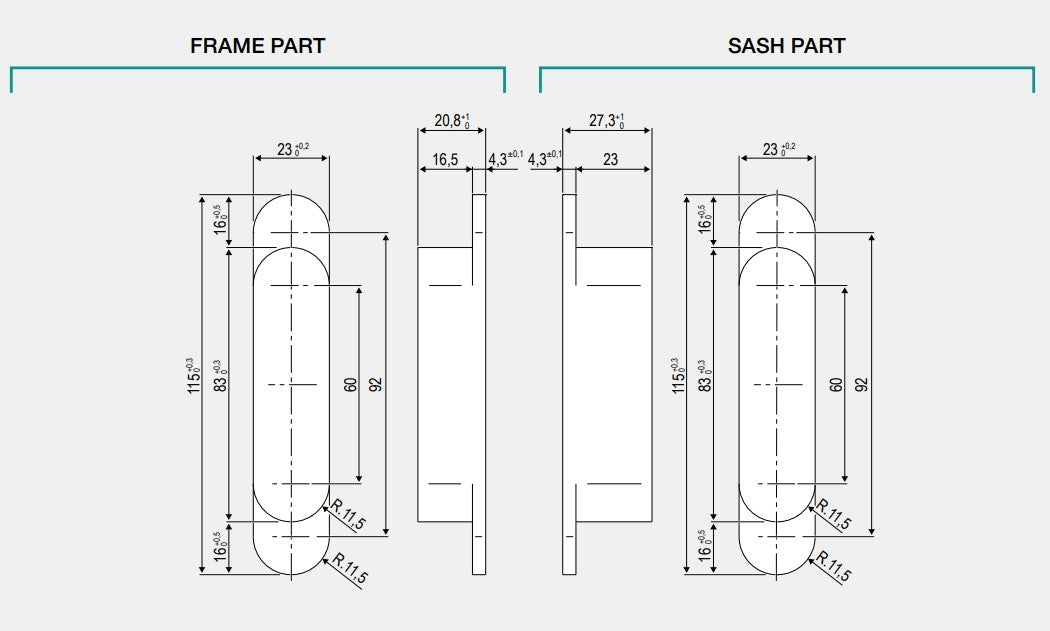

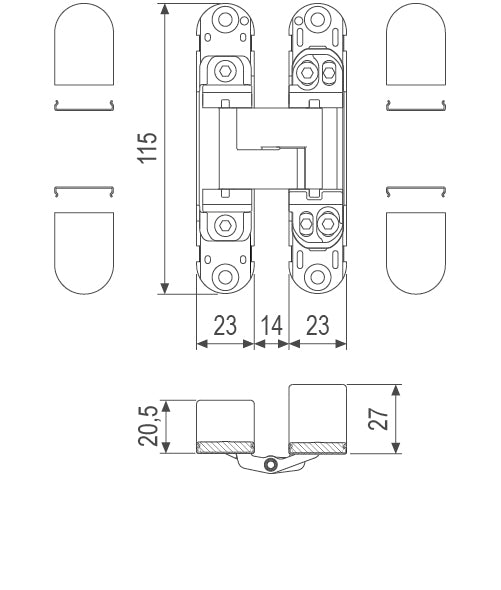

    Height 115 mm (4 1/2")

    Max. Extension 14 mm (9/16")

    Min. Door Thickness 40 mm (1 9/16")

    Material Zamak

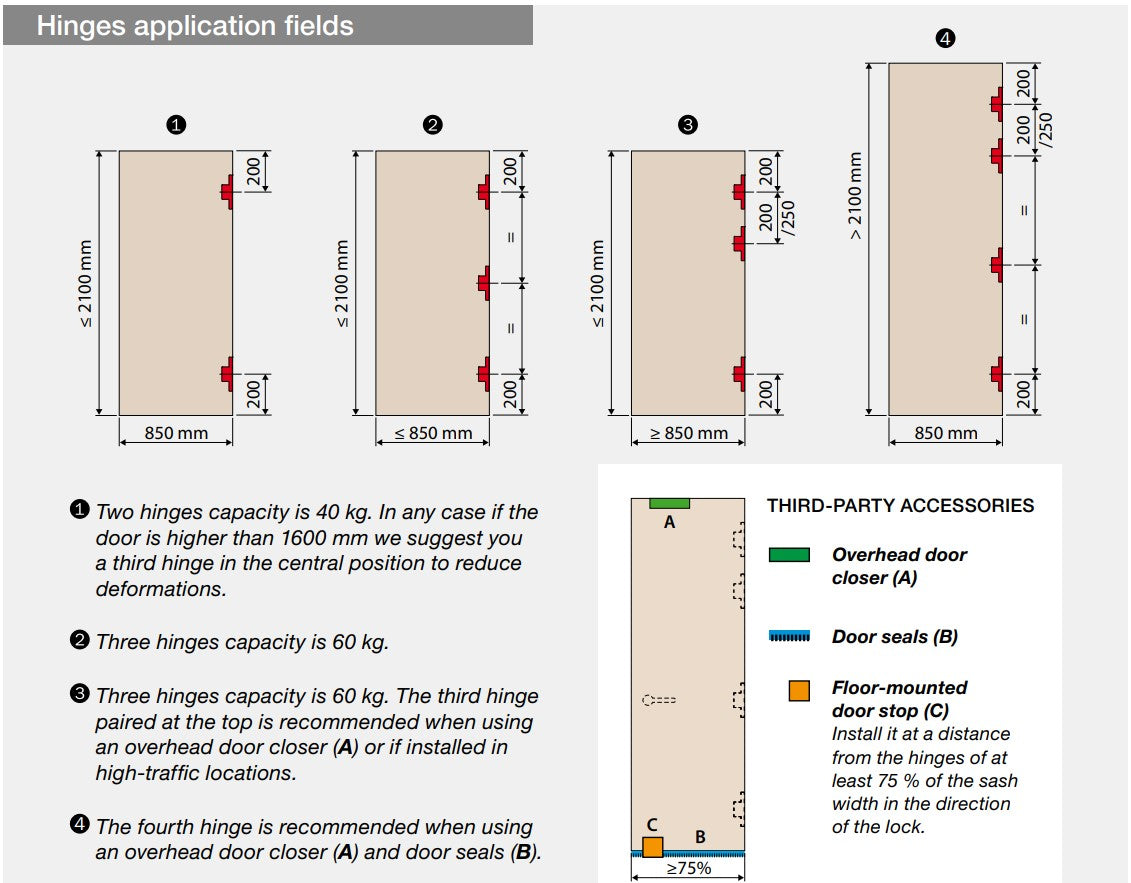

    Capacity

    40 kg (88 lbs) x 2 hinges
    60 kg (132 lbs) x 3 hinges


    Installation Instruction
