High-loading capacity concealed hinges with built-in door closer

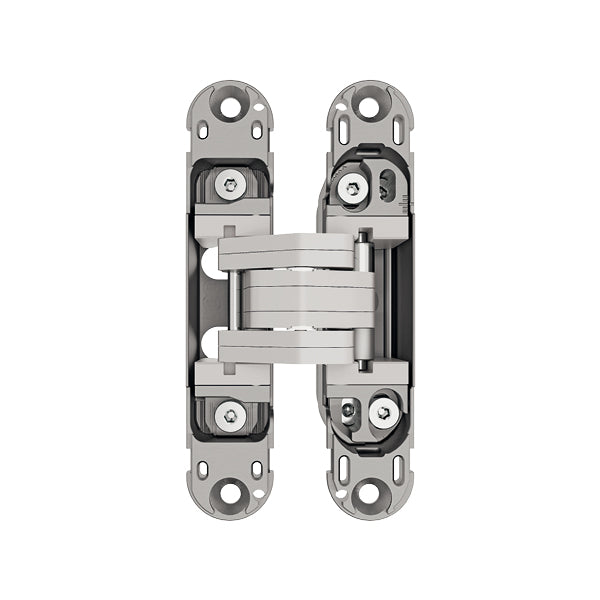

The new concealed hinge with integrated closing system with spring Eclipse 3.2 HD Self is reversible, with the frame part reduced to 21 mm (13/16").

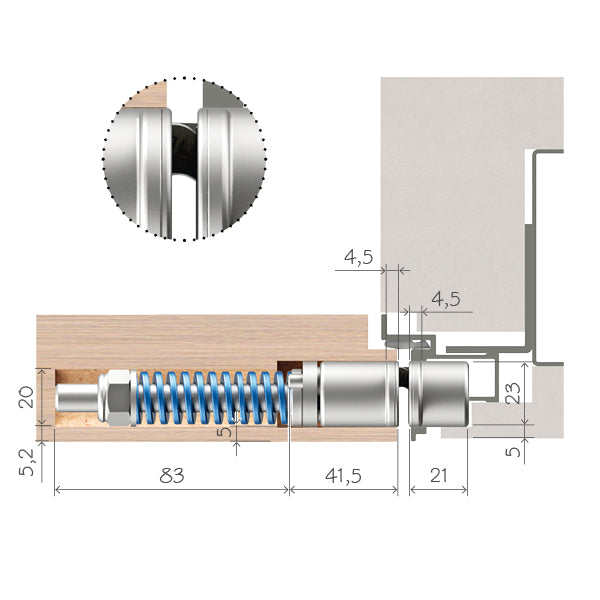

Same millings as the Eclipse 3.2 range, plus the milling for the spring body.

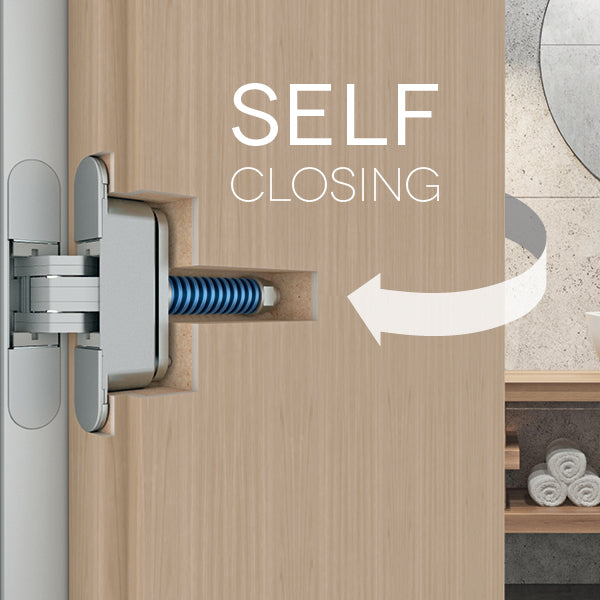

- Self-Closing System.
- For Wood or Aluminium Doors
- Steel Levers, ideal for heavy doors.
Adjustments
in pressure ±1 mm (3/64")
vertical ±2 mm (5/64")
horizontal ±1,5 mm (1/16")

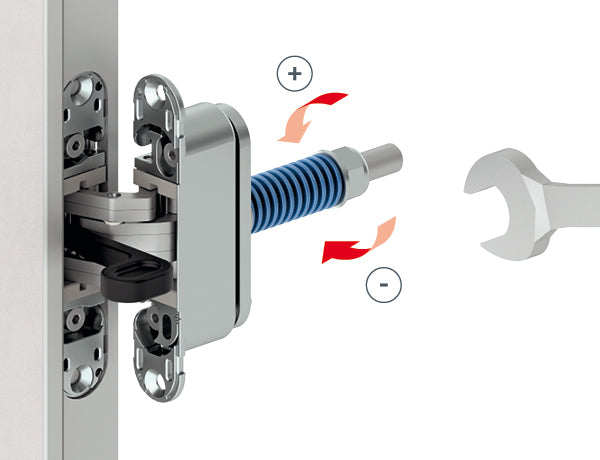

To adjust the door’s closing force, use a 17 mm (11/16") wrench on the spring adjustment nut:
-
To increase the closing force: turn the nut counterclockwise to load the spring.
-
To reduce the closing force: turn the nut clockwise to unload the spring.
Ensure adjustments are made gradually and test the door after each turn to achieve the desired closing strength.

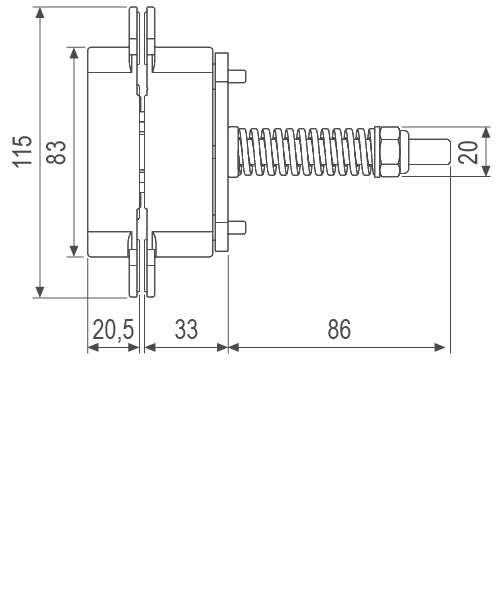

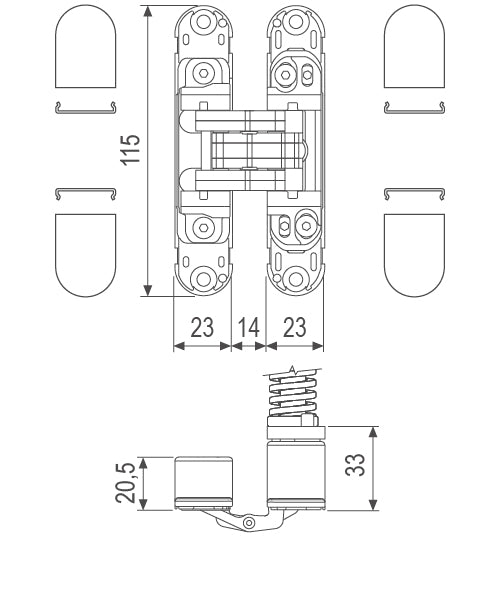

Height 115 mm (4 1/2")
Max. Extension 14 mm (9/16")
Min. Door Thickness 40 mm (1 9/16")
Material Zamak
Capacity for 3.2 hinges
3 hinges = 80 kg (176 lbs)
The load capacity depends on the hinge model and its configuration - whether it is paired with the Eclipse 3.2 or Eclipse 3.2 HD.
