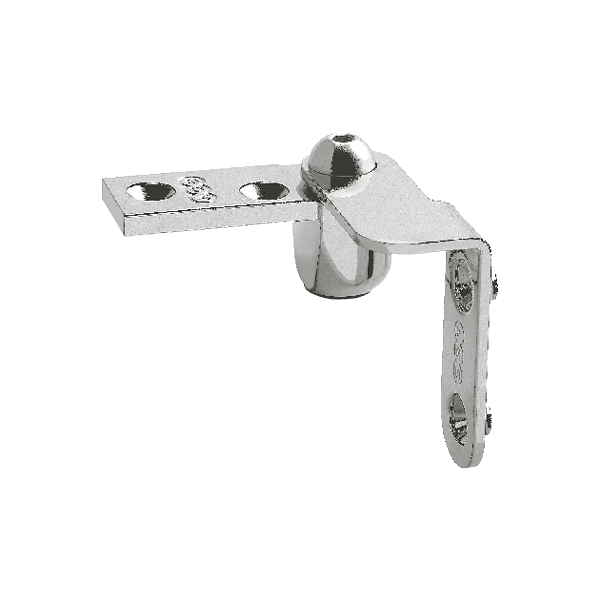

The price is for 2 pieces (1 set). Concealed Corner Pivot Hinge AGB 2R Designed for installation on one door leaf, it has a universal mounting side, meaning it is suitable for both left-hand and right-hand opening doors.
For door panels 40 mm (1 9/16") thick, with a door weight of up to 40 kg (88 lbs.). Vertical adjustment up to 5 mm (3/16").
Technical Information
Model: 2R E10006.41.34
Max Load (2 pcs): 40 kg (88 lbs.)
For Doors With/Without Rebate: Without rebate
Hinge Mounting Side: Universal (left-hand and right-hand opening doors)
Min Door Thickness (±3%): 41 mm
Max Door Thickness (±3%): 41 mm (1 9/16")
Opening Angle: 180°
Vertical Adjustment: +2.5 / –2.5 mm (+1/8" to -1/8")
