MILCASA ERGON TE Swinging Sliding PRECUT Door Set With SPECIALLY Designed Jamb / Casings

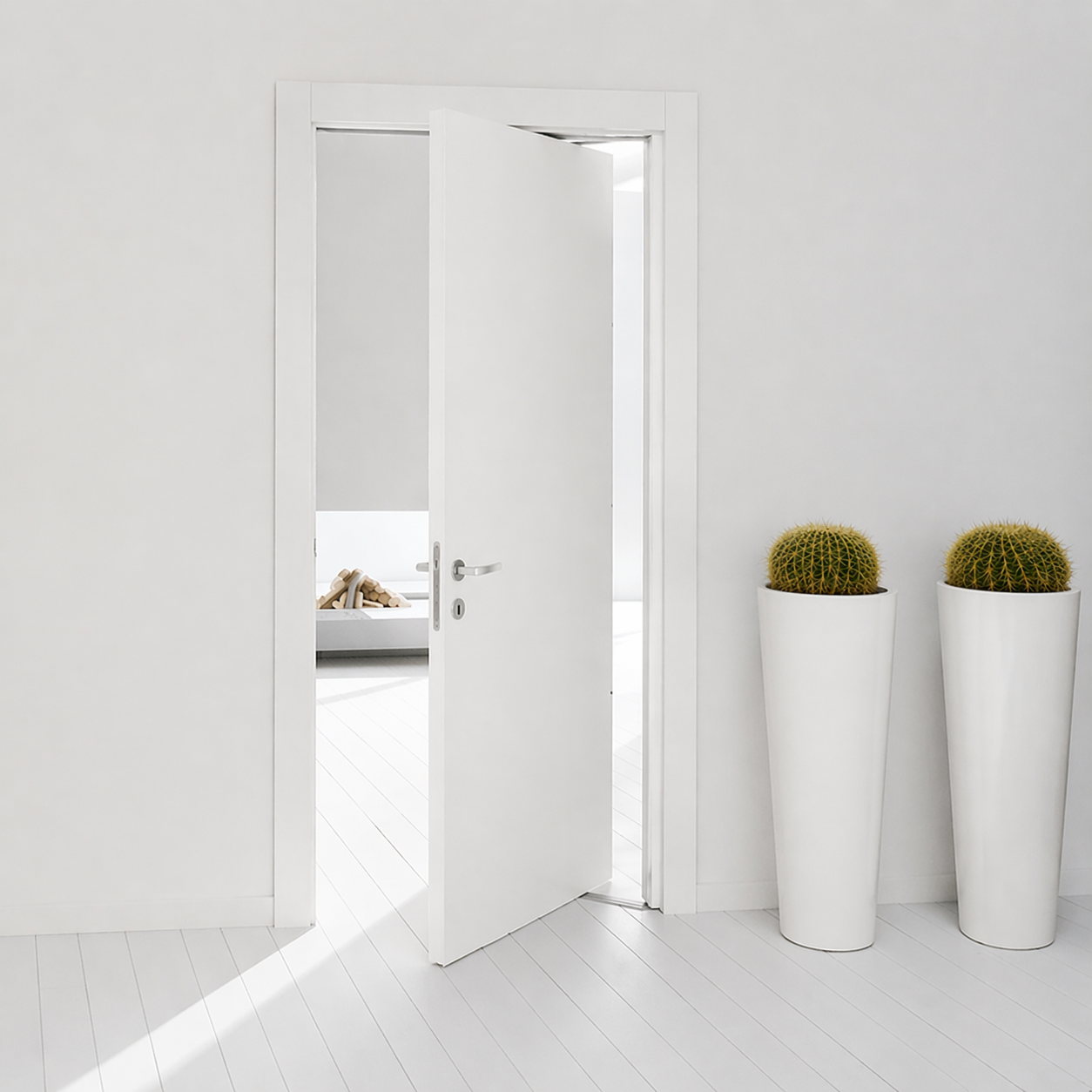

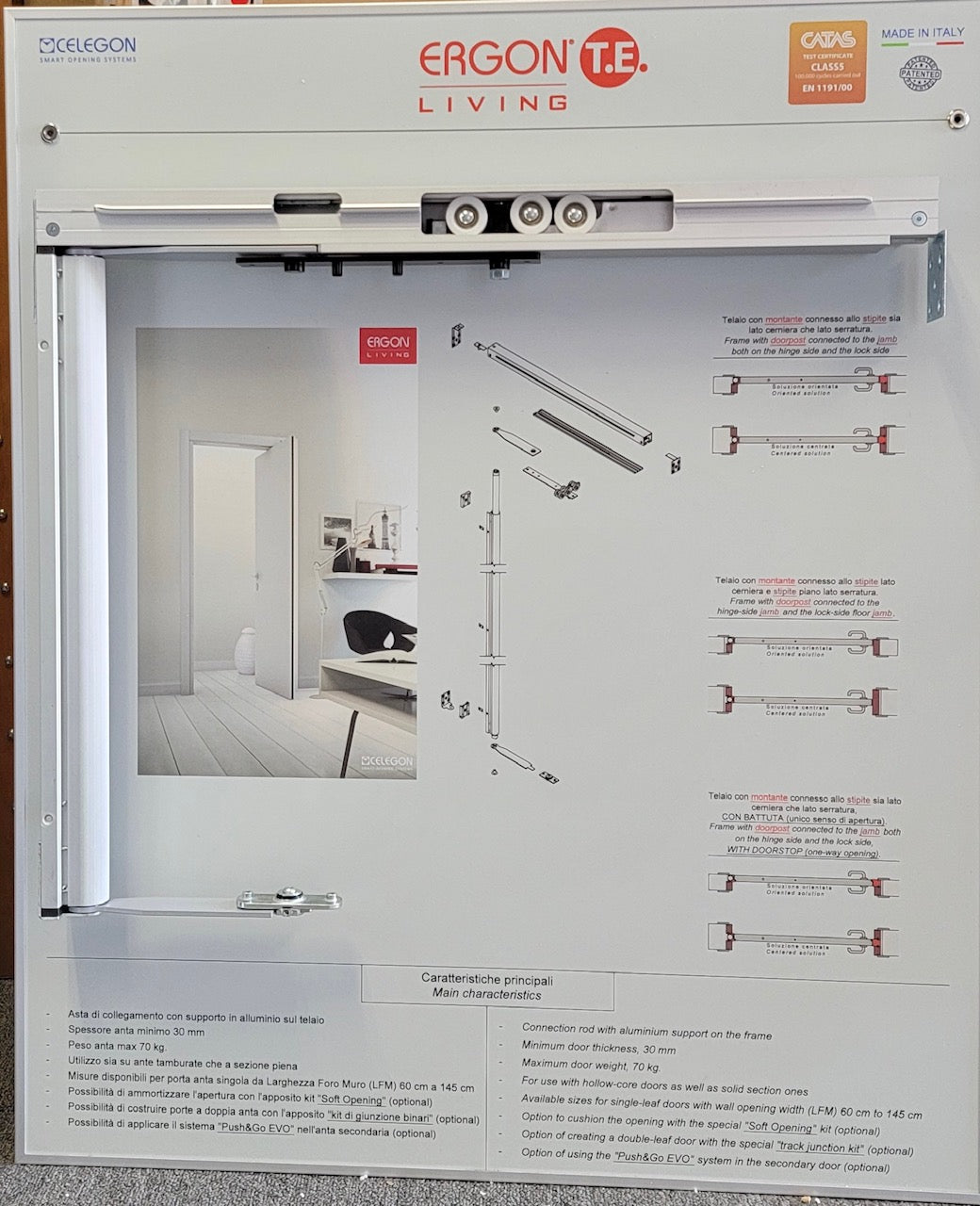

The Ergon Living system is a slide and swing door opening hardware that reduces the threshold's overall size by 50%, making it ideal for limited spaces and allowing movement in one direction, thereby expanding the living space without the need for masonry work.

The fact that the door pushes open both ways makes it possible to enter or leave a room by pushing the door open and then closing it again with extreme ease. This two-way feature is also ideal for resolving issues associated with emergency exit design.

ERGON Swinging Sliding Door Set includes:

1. PRIMED Doors Slab 40 mm thick (1 9/16")

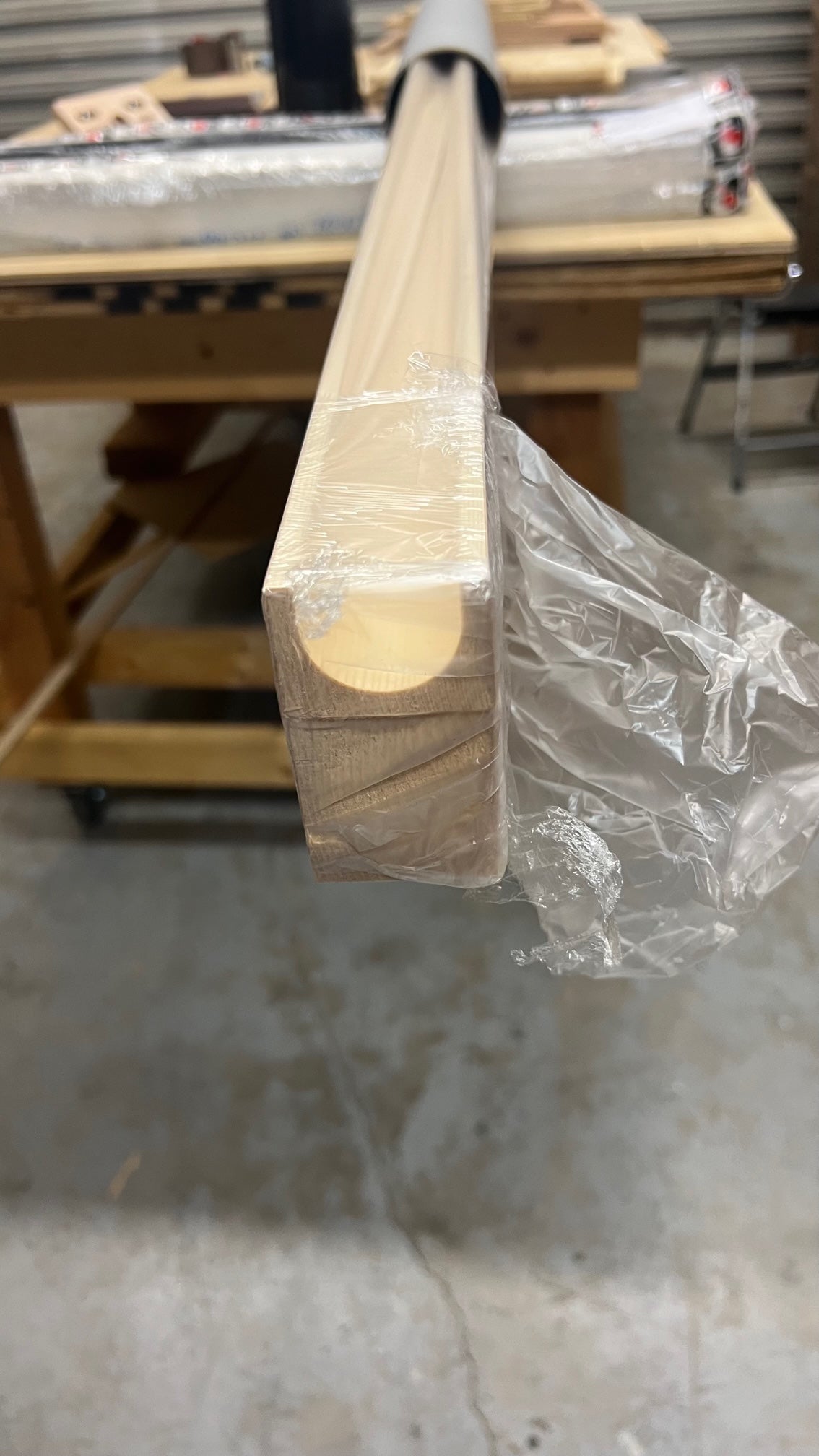

2. Specially made PRIMED Jamb and Casings to accommodate the ERGON Hardware
3. AGB Magnetic Lock (optional)
4. Handle, compatible with AGB Magnetic Lock (optional)
5. Privacy switch (optional)

We are offering labor to prepare (mill) the door for the lock, handle, and hardware.

!!! MILCASA ERGON Hardware is NOT included and sold separately !!!

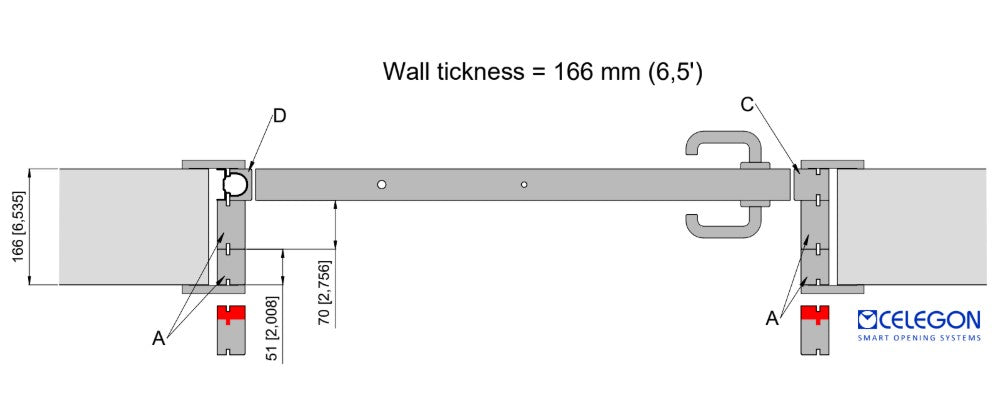

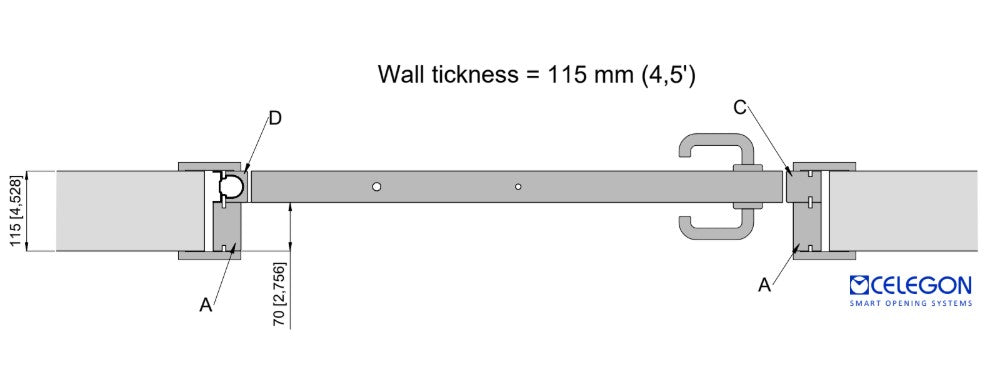

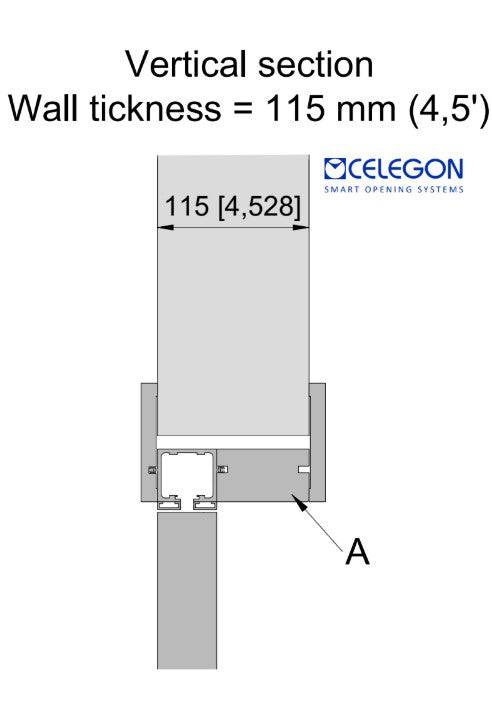

Part A:  Profile 70 mm × 40 mm → 2.76" × 1.57"
(for wall thickness 115 mm → 4.53")

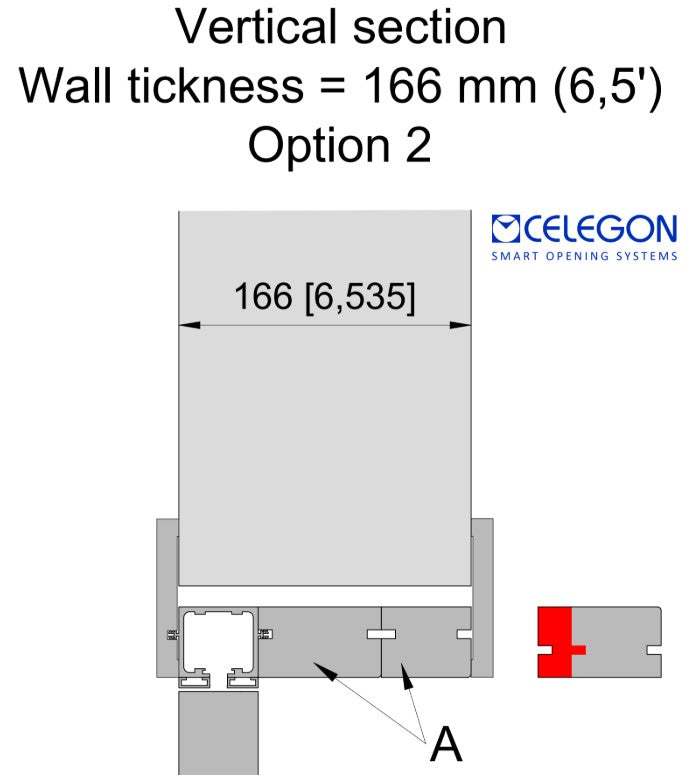

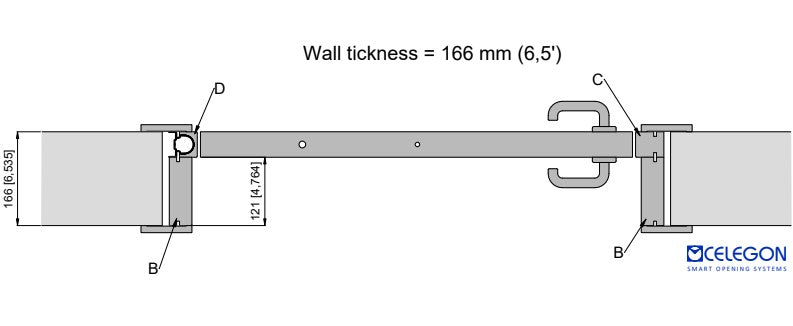

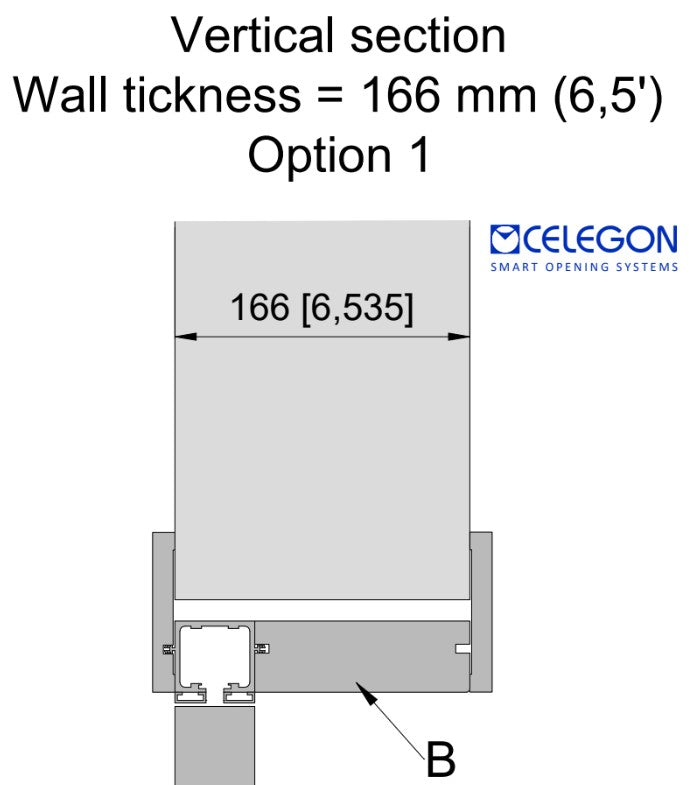

Part B:  Profile 121 mm × 40 mm → 4.76" × 1.57"
(for wall thickness 166 mm → 6.54")

Part C:  Profile 45 mm × 50 mm → 1.77" × 1.97" (Upright)

Part D:  Profile 45 mm × 31.5 mm → 1.77" × 1.24" (Upright)

!!! ERGON Hardware is NOT included and sold separately !!!

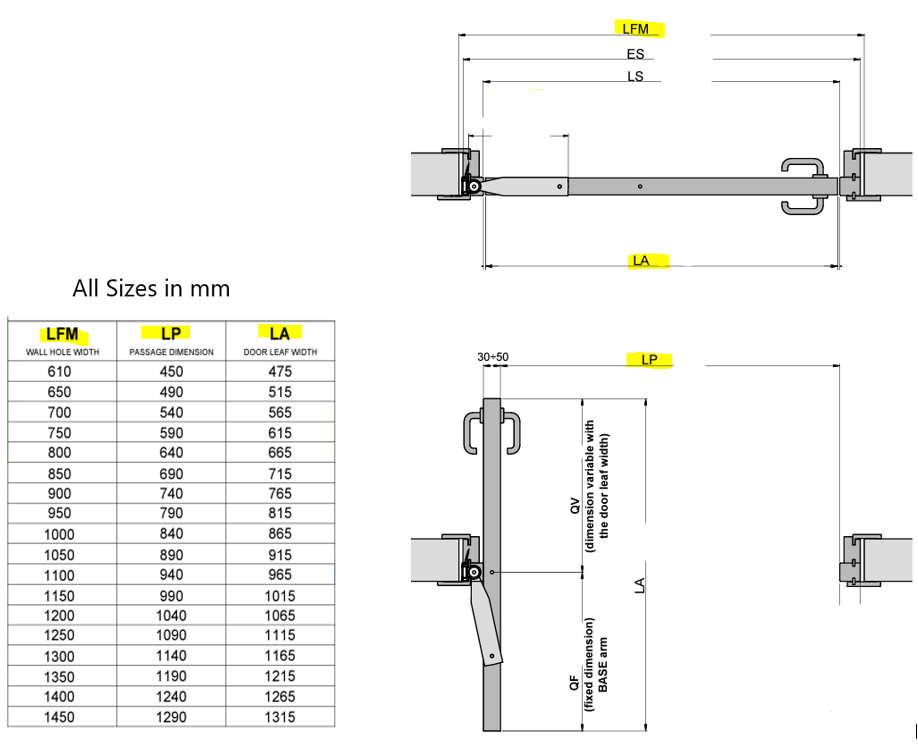

RO Width = Door Width + 4.5"
RO Height = Door Height + 2"-2.5"
