MILCASA COMPLETE Jamb/Casings Kit for ERGON T.E. Swinging Sliding Hardware (Parts A, B, C, D, L, and F)

The Ergon Living system is a slide and swing door opening hardware that reduces the threshold's overall size by 50%, making it ideal for limited spaces and allowing movement in one direction, thereby expanding the living space without the need for masonry work.

The fact that the door pushes open both ways makes it possible to enter or leave a room by pushing the door open and then closing it again with extreme ease. This two-way feature is also ideal for resolving issues associated with emergency exit design.

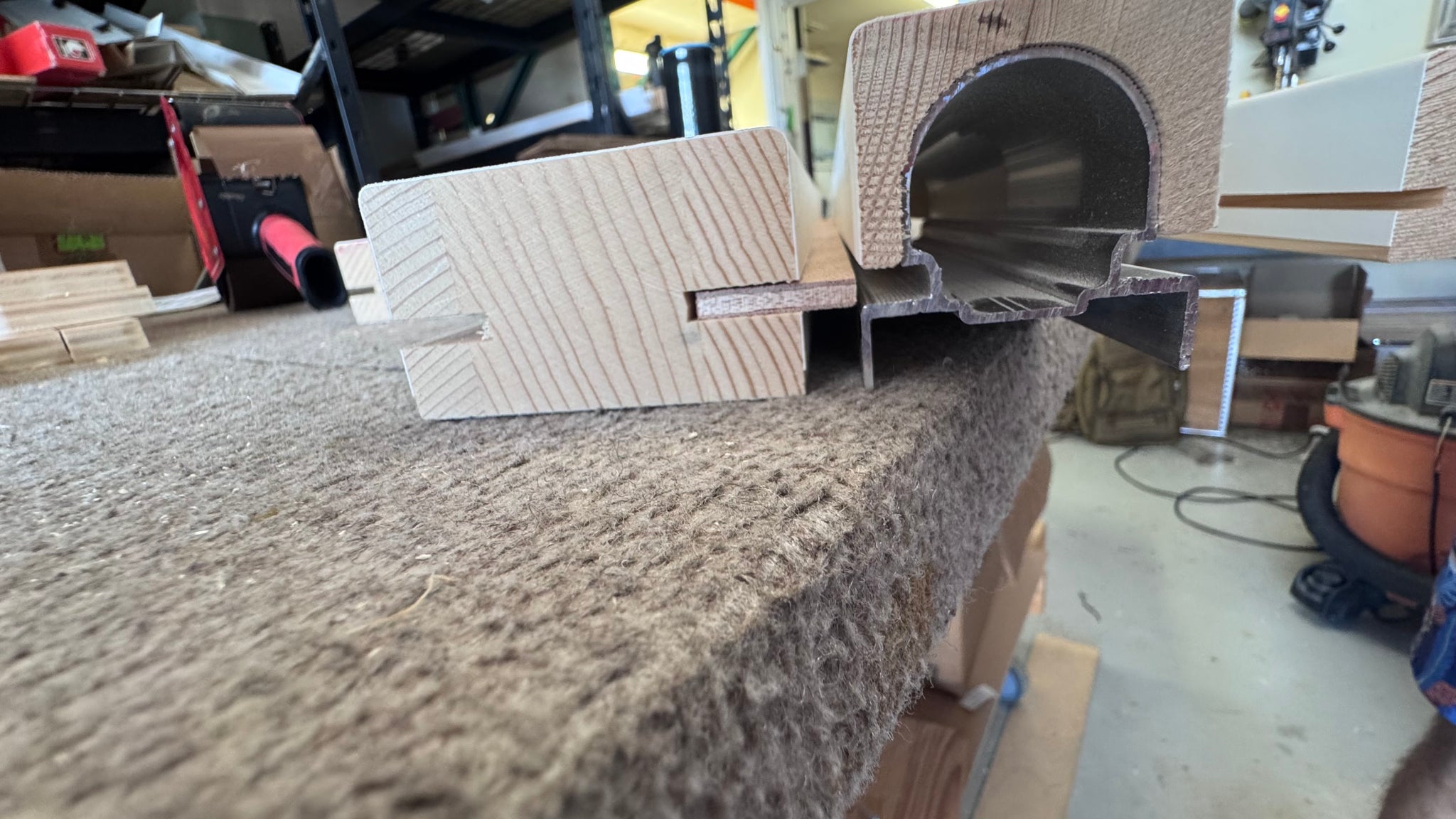

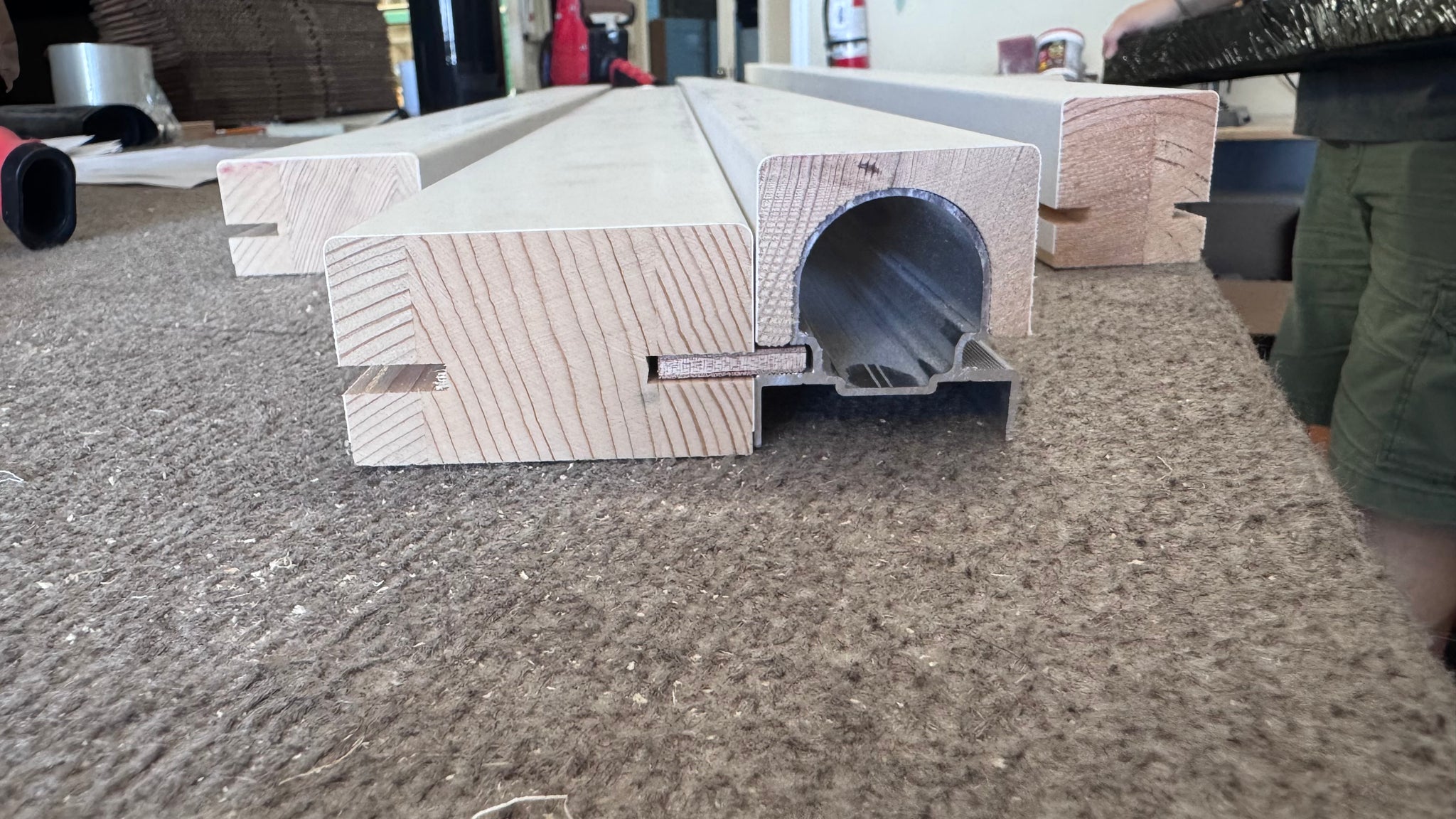

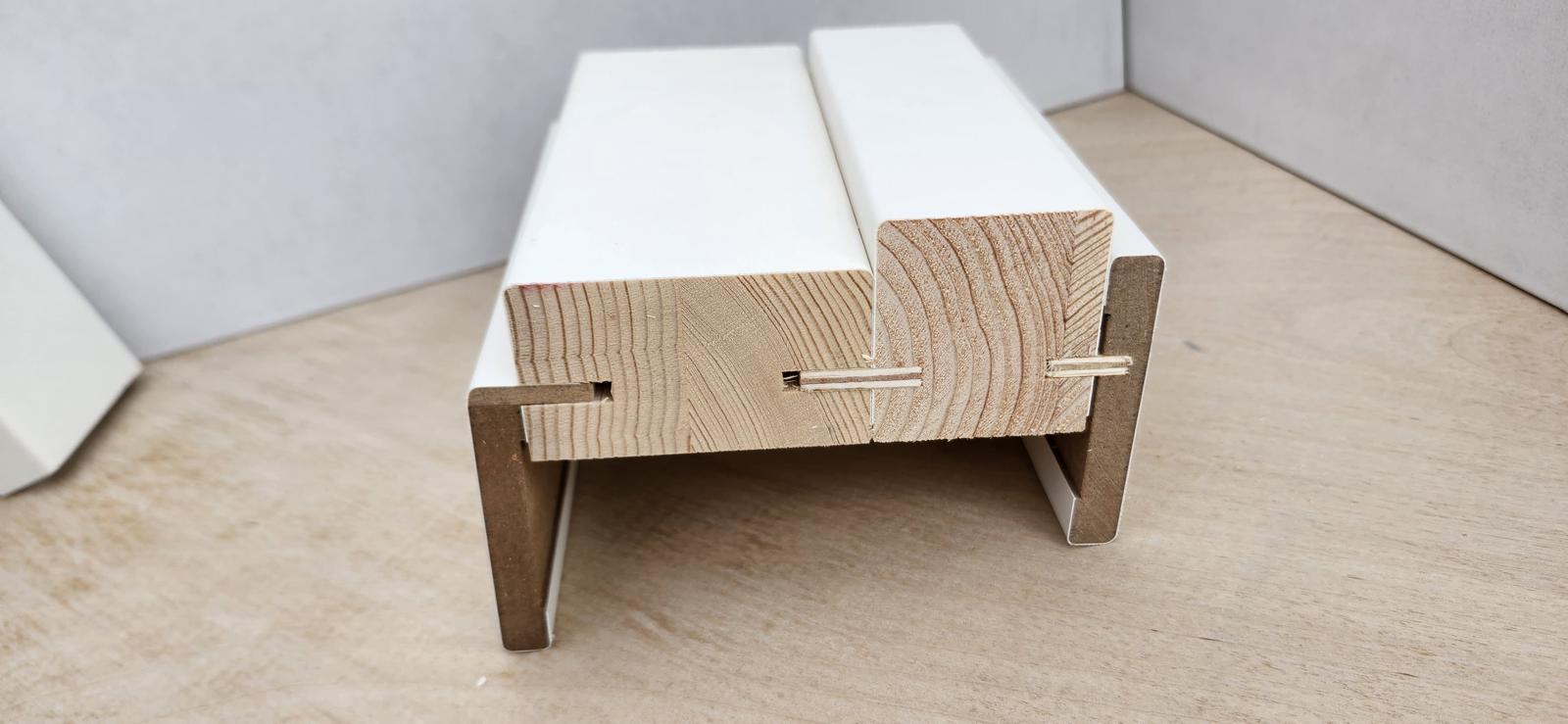

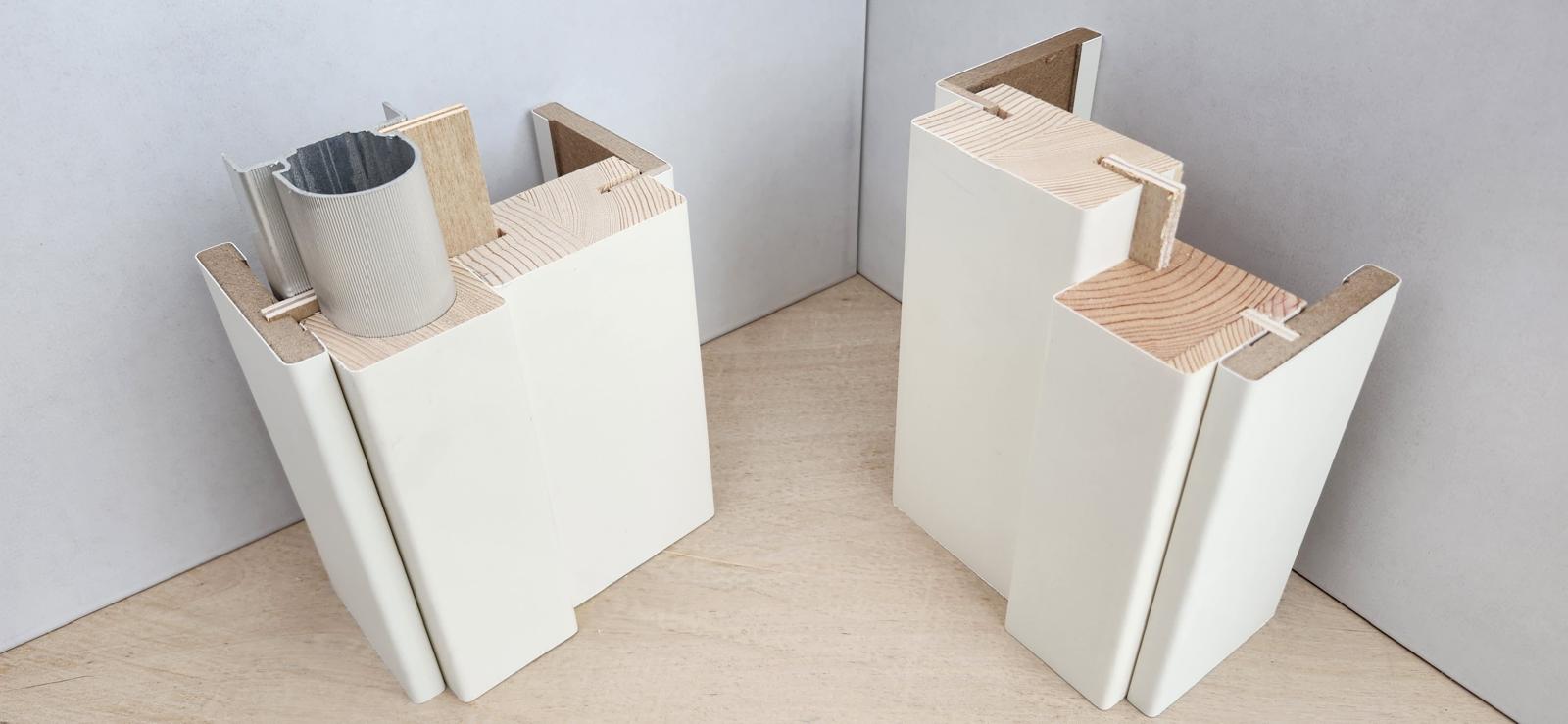

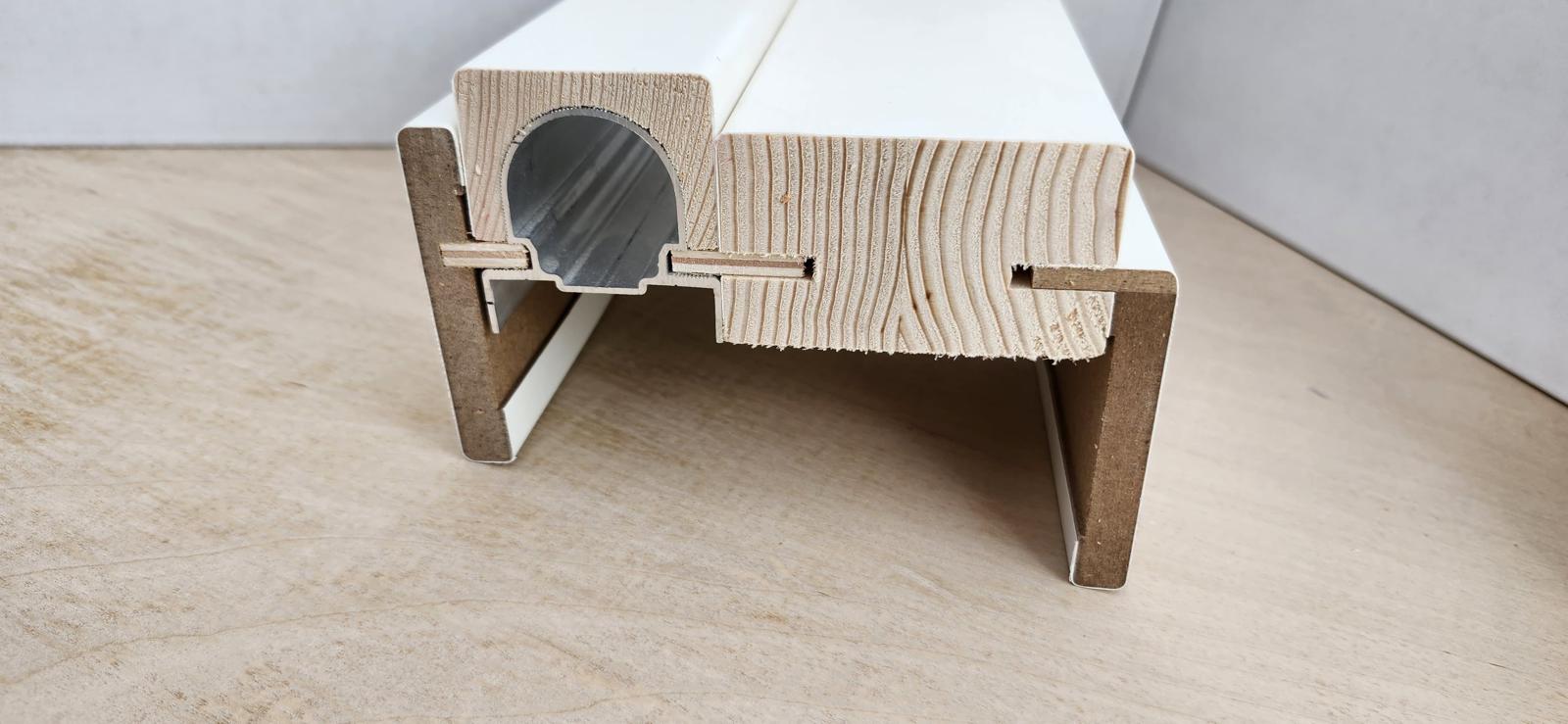

MILCASA ERGON Complete Jamb Kit includes a specially made complete PRIMED Jamb and Casings kit to accommodate the ERGON TE swinging sliding Hardware.

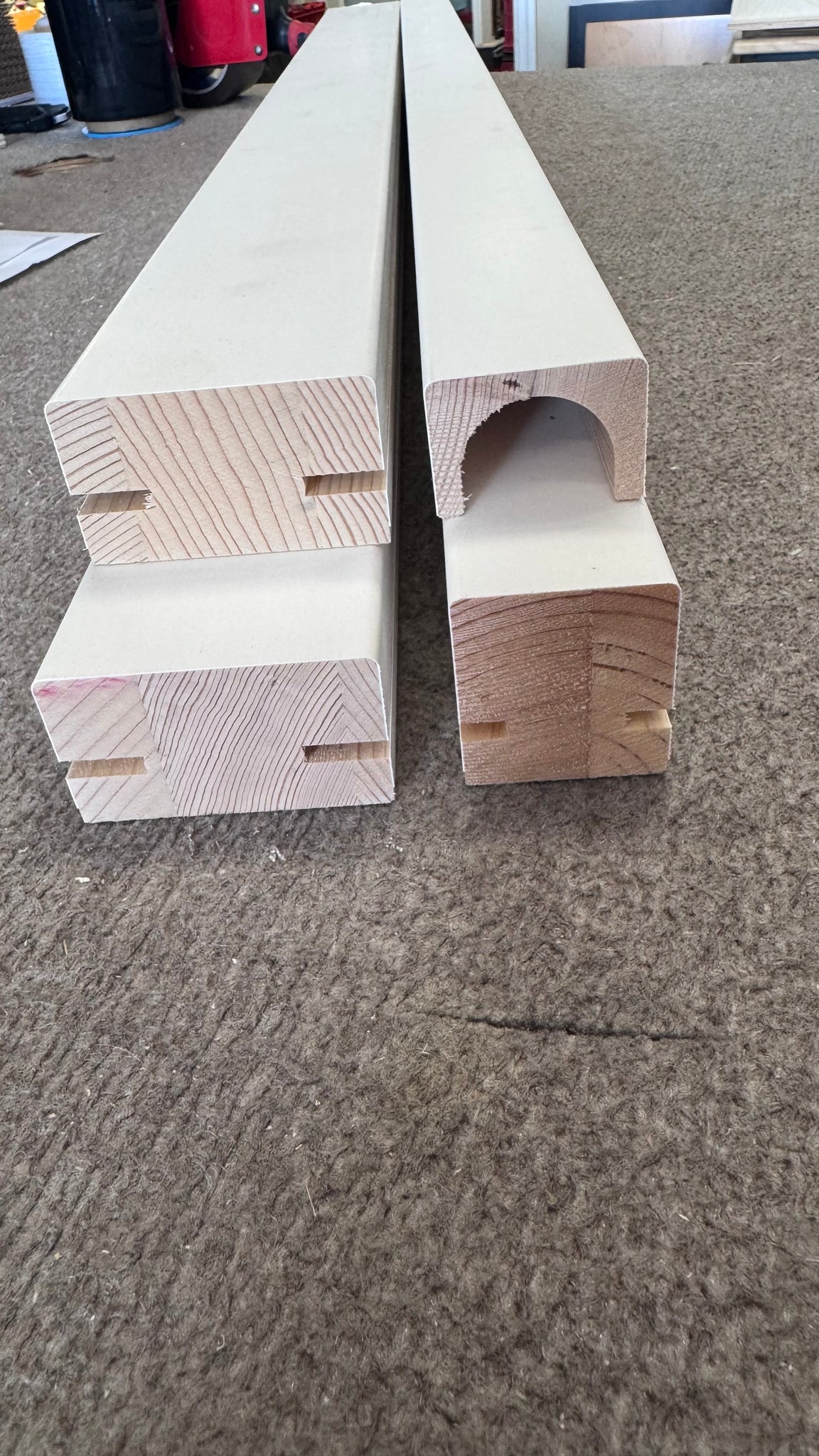

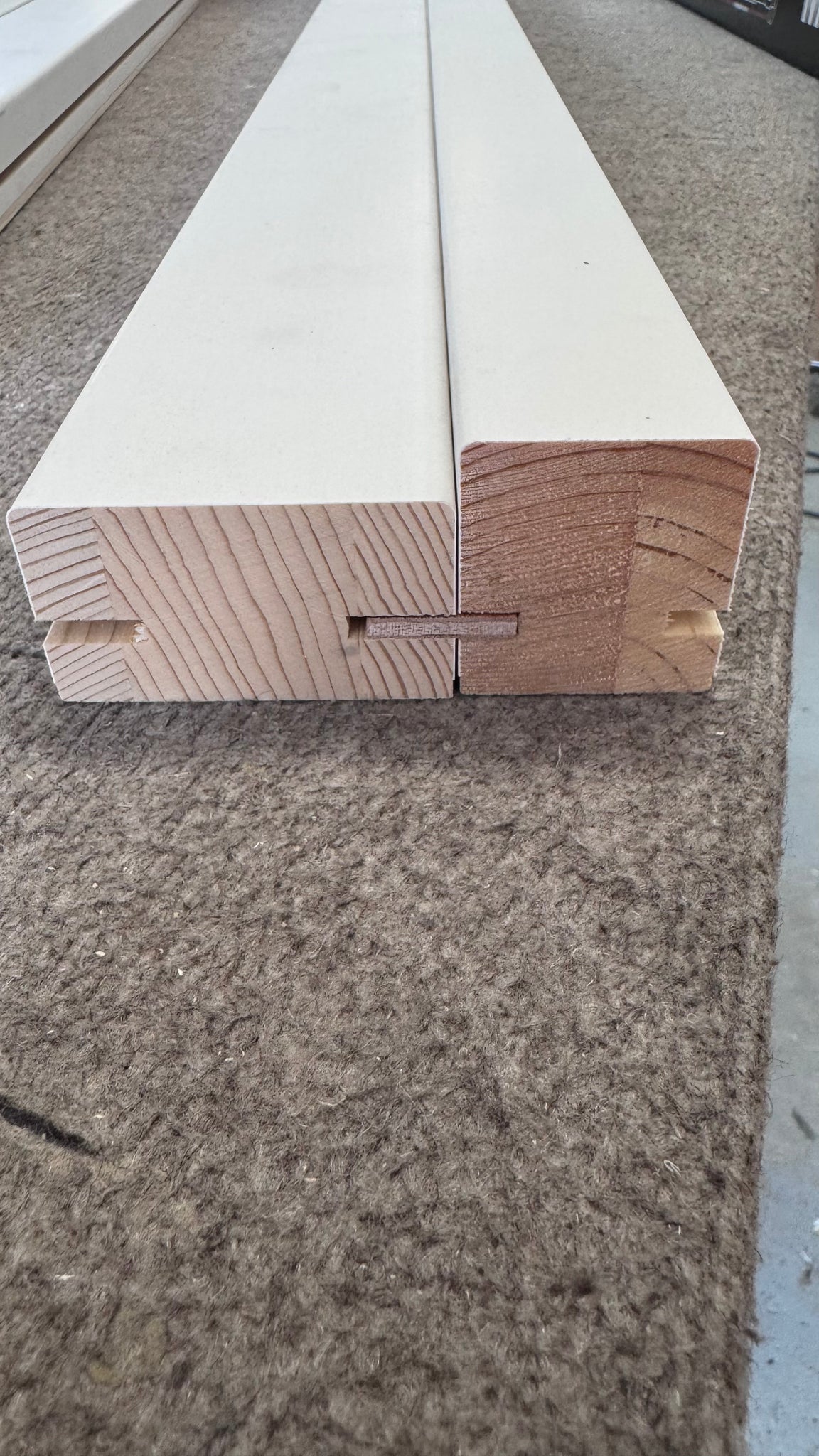

Jamb Parts: A, B, C, and D
Casings: L and F

Part A:  Profile 70 mm × 40 mm → 2.76" × 1.57"
(for wall thickness 115 mm → 4.53")

Part B:  Profile 121 mm × 40 mm → 4.76" × 1.57"
(for wall thickness 166 mm → 6.54")

Part C:  Profile 45 mm × 50 mm → 1.77" × 1.97" (Upright)

Part D:  Profile 45 mm × 31.5 mm → 1.77" × 1.24" (Upright)

RO Width should be  = Door Width + 4.5"
RO Height should be = Door Height + 2"-2.5"
